25A Fluid Slip Ring Conductive Slip Ring Aluminum Alloy Shell 1800rpm Speed

Name: 25A Fluid Slip Ring Conductive Slip Ring Aluminum Alloy Shell 1800rpm Speed
Brand: GuRen
Price: 19 USD

Quality 25A Fluid Slip Ring Conductive Slip Ring Aluminum Alloy Shell 1800rpm Speed wholesale

Brand Name : GuRen

Model Number : A1M2

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : ≤25A

Peak current : 30A

Length : 39mm

width : 14.3mm

Speed : 1800rpm per minute

Housing : M5

Contact Now

A1M2 liquid conductive ring, aluminum alloy shell, 2-layer sealed package, optional mercury or gallium alloy liquid package, speed up to 1800rpm.

A1M2 liquid conductive ring Product features

1. High-quality bearings ensure high-speed rotation without jamming
2. Unique liquid packaging technology allows the generation of as little heat as possible during high-speed rotation.
3. Aluminum alloy shell makes the product lighter.
4. Long service life, the operating speed can reach 100 million revolutions.

A1M2 liquid conductive ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

A1M2 liquid conductive ring Product size drawing

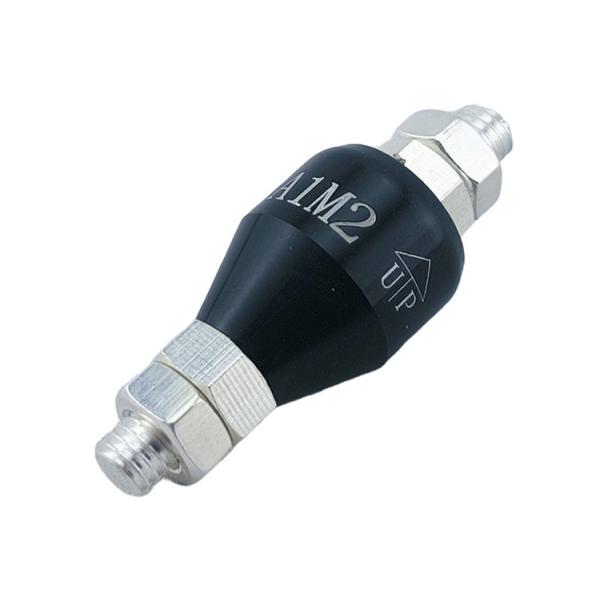

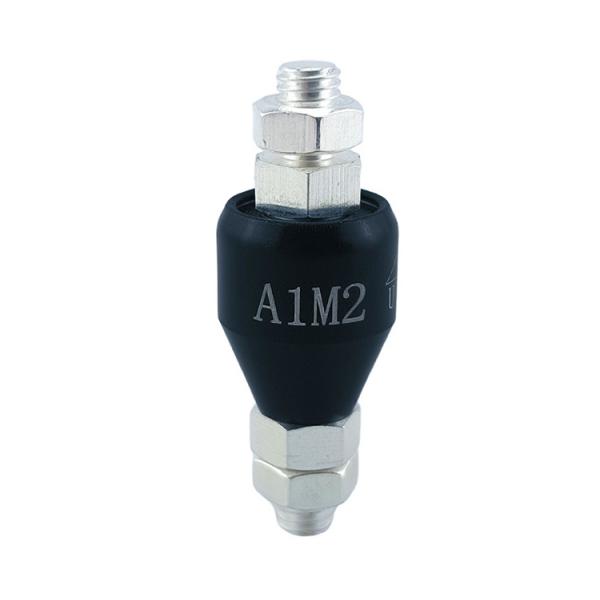

A1M2 liquid conductive ring Product Pictures

A1M2 liquid conductive ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
