120A High Power Slip Ring 1200rpmused In Electroplating Industry

Name: 120A High Power Slip Ring 1200rpmused In Electroplating Industry
Brand: GuRen
Price: 19 USD

Quality 120A High Power Slip Ring 1200rpmused In Electroplating Industry wholesale

Brand Name : GuRen

Model Number : W1M120S-D

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : ≤120A

Peak current : 155A

Length : 62.5mm

width : 30mm

Speed : 1200rpm

Housing : M10

Contact Now

W1M120S-D high power anti-corrosion slip ring is specially used in electroplating, electrolytic equipment and other industries. The slip ring can pass 120A current and can be used in highly corrosive environments.

W1M120S-D high power anti-corrosion slip ring Product features

1. Low wear, supports high-speed rotation, the speed can reach 1200 rpm.
2. Supports large current transmission, the maximum current can pass 155A.
3. Three-layer protection structure, support long-term use in complex environment.
4. Compact structural design, small size.

W1M120S-D high power anti-corrosion slip ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

W1M120S-D high power anti-corrosion slip ring Product size drawing

120A High Power Slip Ring 1200rpmused In Electroplating Industry

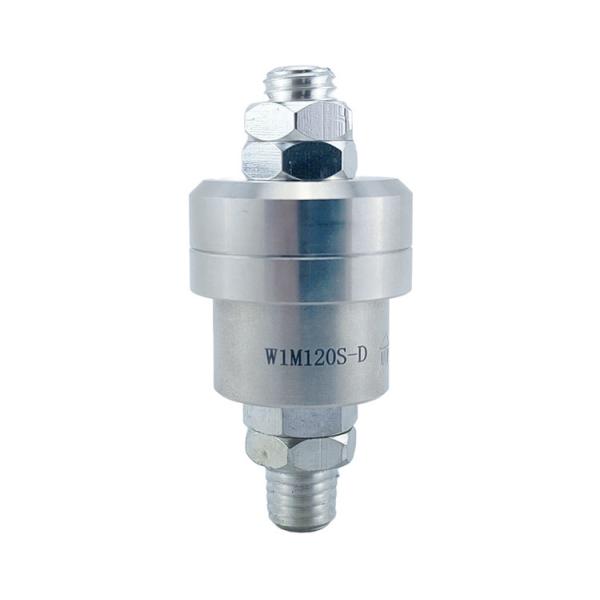

W1M120S-D high power anti-corrosion slip ring Product Pictures

120A High Power Slip Ring 1200rpmused In Electroplating Industry

W1M120S-D high power anti-corrosion slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
