450A Ultra High Current Slip Ring M16 Stud Stainless Steel Metal Slip Ring

Name: 450A Ultra High Current Slip Ring M16 Stud Stainless Steel Metal Slip Ring
Brand: GuRen
Price: 19 USD

Quality 450A Ultra High Current Slip Ring M16 Stud Stainless Steel Metal Slip Ring wholesale

Brand Name : GuRen

Model Number : W1M500ST

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : ≤450A

Peak current : 500A

Length : 114mm

width : 40mm

Speed : 400rpm

Stud : M16

Contact Now

W1M500ST high current conductive slip ring is specially designed for use scenarios that require high current. It can normally pass 450A and a maximum current of 500A, and the rotation speed can reach 400RPM per minute.

W1M500ST high current conductive slip ring Product features

1. Two-layer fluid sealing structure, the product is safer.
2. Ultra-low torque, smoother rotation.
3. High current design, maximum current can pass 500A.
4. Stable transmission, signal transmission without noise.
5. Integrated structure design, small size, easy to install.

W1M500ST high current conductive slip ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

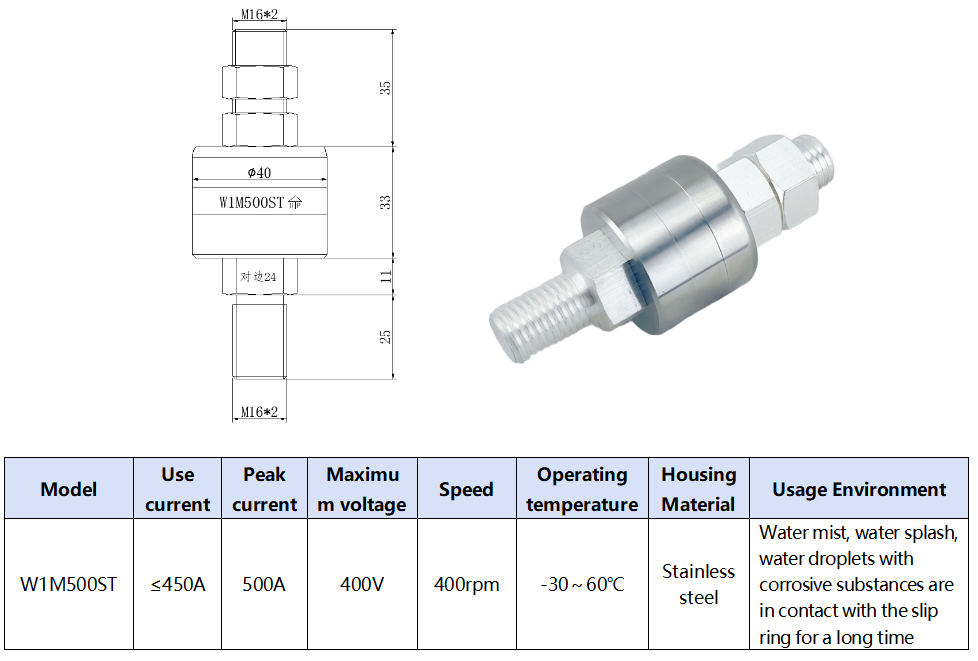

W1M500ST high current conductive slip ring Product size drawing

450A Ultra High Current Slip Ring M16 Stud Stainless Steel Metal Slip Ring

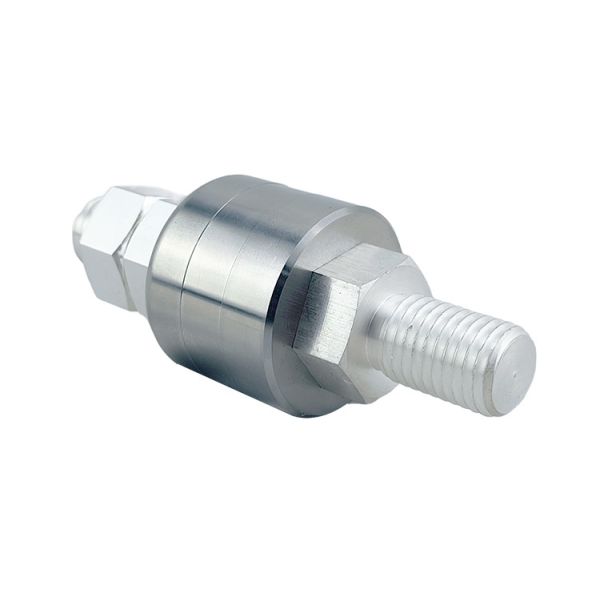

W1M500ST high current conductive slip ring Product Pictures

450A Ultra High Current Slip Ring M16 Stud Stainless Steel Metal Slip Ring

W1M500ST high current conductive slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
